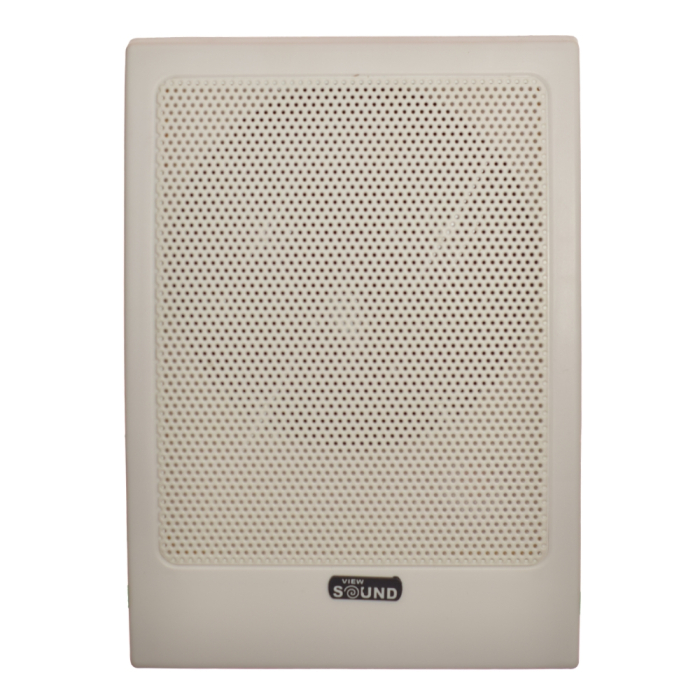

View Sound Wall Mount Speaker, 10 W, White, VCS-6803A
EGP 1,017
SKU
156977
The View Sound VCS-6803A is a professional wall mount speaker built for 100 V line public address systems. It uses a 6-inch full-range driver with a built-in line matching transformer, so many units can be daisy-chained on a single pair of cables back to a mixer amplifier. Rated output is 10 W (100 V Line), and the working line voltage is 100 V constant-voltage distribution. Typical applications include mosques, schools, offices, showrooms, clinics and shopping malls, plus corridors, factories and reception areas that need surface-mounted coverage. Mount the cabinet on the supplied bracket, select the 100 V tap, and keep the total tapped wattage below the amplifier rating.
| SKU | 156977 |
|---|---|
| Warranty | 1 Year |
| Country of Origin | China |
| Brand | View Sound |
| Product type | Wall Mount Speaker |
| Color | White |
| Audio Device Type | Surface-Mount PA Cabinet Speaker |
| Bluetooth Version | Not Supported (Passive Wired Speaker) |
| Power Output | 10 W (100 V Line) |
| Frequency Response | Full-Range Speech and Music Reproduction (Curve Not Published by Manufacturer) |
| Noise Cancelling | Not Supported (Passive PA Loudspeaker) |
| Built-in Microphone | No — Speaker Only |
| Battery Life | No Battery — Externally Powered |
| Charging Time | No Battery — Externally Powered |
| Water Resistance | Indoor Use Only — Not Water Resistant |
| IP Rating | Not IP Rated (Indoor Installation) |
| Compatible Devices | 100 V / 70 V Line PA Systems / Mixer Amplifiers / Public Address and Background Music Installations |
| Ports | 2-Wire Screw Terminal Block (100 V Line Input) |
| Country of Origin | China |
| Barcode | 62211270393 |
| Model Number | VCS-6803A |
